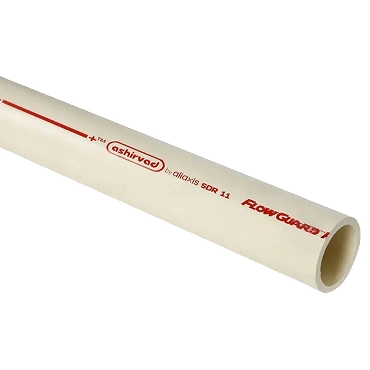

Ashirvad CPVC Flowguard Plus Pipe, SDR-11, 5m Length

Rs. 341.00

~~Rs. 600.00~~ Rs. 341.00

44% OFF Sold out

Taxes included. Shipping calculated at checkout.

Size 1/2" 3/4" 1" 1 ¼"

Product Highlights

Quick Answer: What is Ashirvad CPVC Flowguard Plus Pipe used for?

Ashirvad CPVC Flowguard Plus Pipe SDR-11 is a premium hot and cold water distribution pipe system, designed for residential and commercial plumbing applications with superior temperature resistance up to 93°C and 50+ year service life.

Material: CPVC (Chlorinated Polyvinyl Chloride) - FlowGuard Gold Technology
Pressure Rating: SDR-11 (PN 15 / 15 kg/cm² at 25°C)
Temperature Range: Up to 93°C (200°F) continuous service
Length: 5 meters per pipe
Standards: ASTM D2846, NSF certified for potable water

Product Description

Ashirvad CPVC Flowguard Plus Pipe SDR-11 represents the gold standard in hot and cold water plumbing systems. Manufactured using advanced FlowGuard Gold CPVC technology, these pipes deliver exceptional performance in demanding residential and commercial applications. The SDR-11 rating ensures robust pressure handling capacity of 15 kg/cm², making it suitable for multi-story buildings, high-rise apartments, and installations with significant elevation changes.

The 5-meter length provides optimal coverage with fewer joints, reducing installation time and potential leak points. The smooth interior surface prevents scale buildup and bacterial growth, ensuring clean water delivery for decades. CPVC's inherent corrosion resistance eliminates the pinhole leaks and rust issues common with metal pipes, while the material's low thermal conductivity reduces heat loss in hot water lines. Backed by rigorous quality testing and international certifications, Ashirvad Flowguard Plus pipes offer unmatched reliability for modern plumbing systems.

Technical Specifications (Quick Reference)

Specification	Details
Pipe Type	CPVC Hot & Cold Water Distribution Pipe
Pressure Class	SDR-11 (PN 15 / 15 kg/cm² at 25°C)
Temperature Rating	Up to 93°C (200°F) continuous, 100°C intermittent
Pipe Length	5 meters (16.4 feet)
Color	Cream/Beige (CPVC standard)
Certifications	ASTM D2846, NSF/ANSI 61 (Potable Water), ISI marked

Recommended Applications

Hot Water Distribution: Geyser connections, solar water heater systems, and centralized hot water supply in apartments and hotels
Cold Water Plumbing: Overhead tank distribution, bathroom supply lines, and kitchen plumbing networks
High-Rise Buildings: Multi-story residential and commercial buildings requiring high-pressure rated piping systems
Residential Construction: New home plumbing, villa projects, and independent house water distribution systems
Renovation Projects: Replacement of corroded metal pipes in existing buildings with modern CPVC systems
Commercial Facilities: Hotels, hospitals, schools, and office complexes requiring reliable hot water delivery

Installation Guidelines

Storage & Handling: Store pipes horizontally on flat surface away from direct sunlight; avoid dropping or impact damage
Cutting: Use pipe cutter or fine-tooth hacksaw to cut squarely; deburr inside and outside edges; chamfer pipe end at 10-15°
Cleaning & Priming: Clean pipe ends and fitting sockets with CPVC cleaner; apply primer to ensure proper solvent cement bonding
Solvent Cementing: Apply Ashirvad Flowguard Plus CPVC solvent cement evenly; insert pipe into fitting with quarter turn; hold for 30 seconds
Support & Clipping: Install pipe clamps at maximum 1-meter intervals for horizontal runs; use expansion loops for long runs exceeding 10 meters
Pressure Testing: Allow 24 hours curing time before pressure testing; test at 1.5x working pressure for 30 minutes before commissioning
