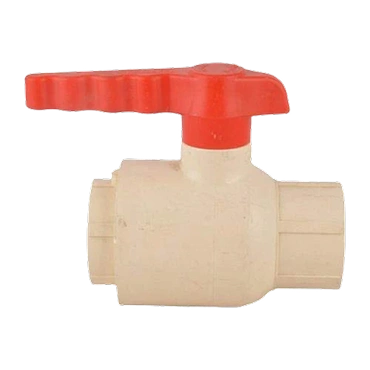

Ashirvad Flowguard Plus CPVC Ball Valve

Ashirvad Flowguard Plus CPVC Ball Valve

Rs. 95.00
Rs. 149.00 Rs. 95.00
37% OFF Sold out
Taxes included. Shipping calculated at checkout.
Size

Product Highlights

Quick Answer: What is Ashirvad Flowguard Plus CPVC Ball Valve used for?

Ashirvad Flowguard Plus CPVC Ball Valve is a quarter-turn shut-off valve for controlling water flow in CPVC piping systems, designed for isolating fixtures, appliances, and pipe sections in hot and cold water applications with durable, leak-free operation.

  • Material: CPVC body with brass/stainless steel ball mechanism
  • Operation: Quarter-turn (90°) on/off control
  • Temperature Rating: Up to 93°C (200°F)
  • Pressure Rating: PN 15 (15 kg/cm²)
  • Connection: Socket type (Solvent Weld) both ends

Product Description

Ashirvad Flowguard Plus CPVC Ball Valve provides reliable on/off control for hot and cold water distribution systems. Featuring a precision-engineered ball mechanism housed in a corrosion-resistant CPVC body, this valve delivers smooth quarter-turn operation with minimal effort. The full-port design ensures unrestricted water flow when open, while the tight sealing mechanism provides complete shut-off when closed, making it ideal for isolating fixtures, appliances, or pipe sections during maintenance.

The valve's CPVC construction ensures compatibility with Ashirvad Flowguard Plus piping systems and eliminates the corrosion issues common with all-metal valves. The ergonomic handle provides clear visual indication of valve position (parallel to pipe = open, perpendicular = closed), while the robust internal components ensure thousands of trouble-free open/close cycles. Essential for geyser isolation, fixture shut-offs, and emergency water control, this ball valve integrates seamlessly with solvent-welded CPVC installations.

Technical Specifications (Quick Reference)

Specification Details
Valve Type Ball Valve (Quarter-turn)
Body Material CPVC (Chlorinated Polyvinyl Chloride)
Ball Material Brass/Stainless Steel
Maximum Temperature 93°C (200°F) continuous service
Pressure Rating PN 15 (15 kg/cm² at 25°C)
Connection Type Socket (Solvent Weld) - Both ends

Recommended Applications

  • Geyser Isolation: Shut-off valves on hot water inlet and outlet for maintenance and emergency shut-down
  • Fixture Control: Individual isolation valves for sinks, basins, toilets, and shower fixtures
  • Appliance Connections: Shut-off valves for washing machines, dishwashers, and water purifiers
  • Zone Isolation: Sectional control valves for isolating bathrooms, kitchens, or floors during repairs
  • Overhead Tank Lines: Main shut-off valves for controlling water distribution from storage tanks
  • Emergency Shut-off: Quick-closing valves for leak isolation and system maintenance

Installation Guidelines

  1. Pipe Preparation: Cut pipes squarely, deburr, and chamfer at 10-15°; ensure valve is in closed position during installation
  2. Orientation Check: Install valve with handle accessible and flow direction arrow (if marked) pointing in correct direction
  3. Surface Cleaning: Clean pipe ends and valve sockets with CPVC cleaner to remove contaminants
  4. Solvent Cementing: Apply Ashirvad CPVC solvent cement to pipe ends and valve sockets; insert pipes with quarter turn and hold for 30 seconds each
  5. Curing & Testing: Allow 24 hours curing time before operating valve or pressurizing system; test for leaks at valve body and connections
