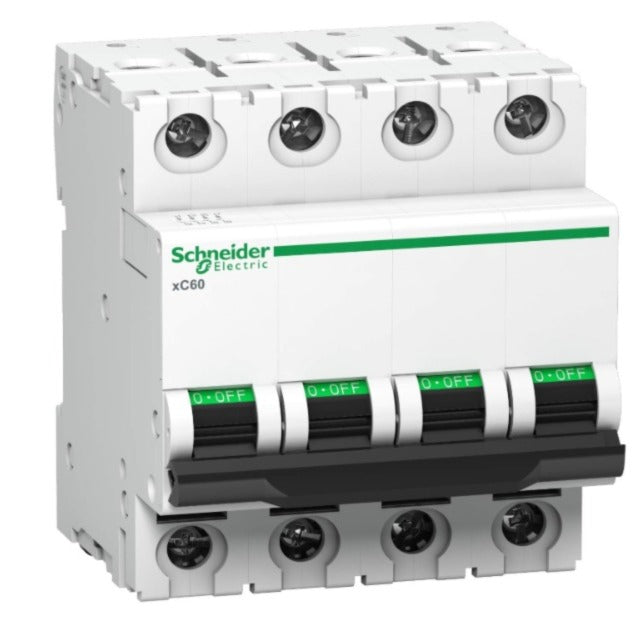

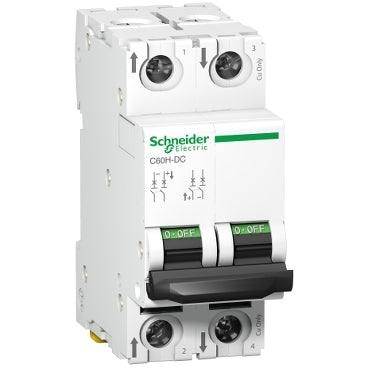

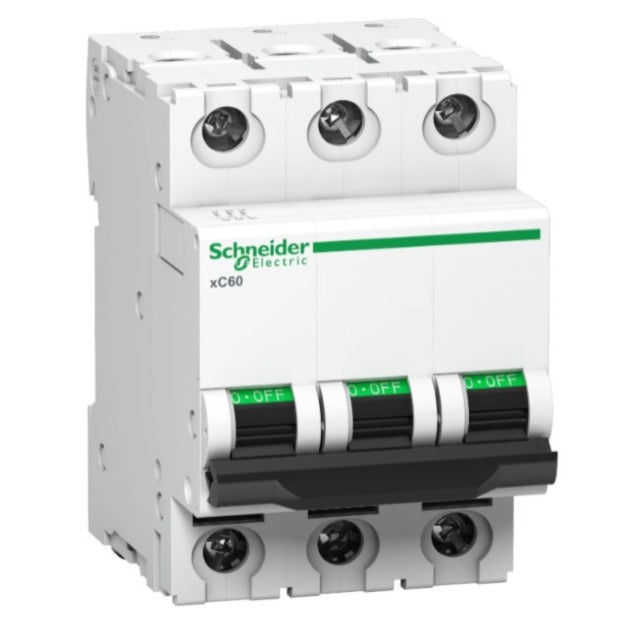

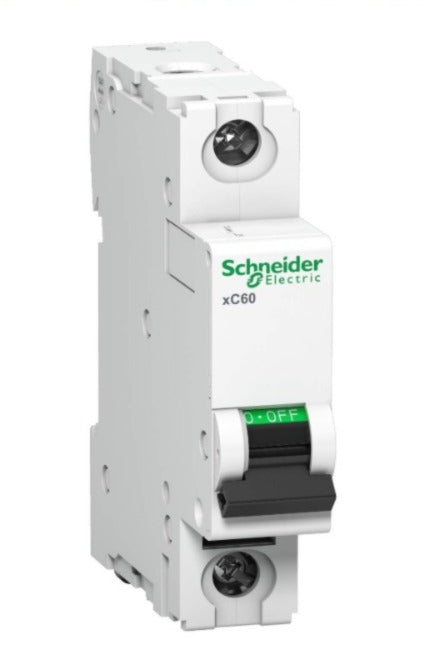

Schneider Miniature circuit breaker MCB - C60H - C curve

Product Highlights

C-Curve Optimization: 5-10x magnetic trip prevents nuisance tripping with inductive loads
Dual AC/DC Capability: Unique 10kA AC / 15kA DC breaking capacity in same device
Commercial Grade: IEC 60947-2 industrial isolation standard for professional use
Installation Efficiency: VisiTrip indicator, comb busbar, auxiliary contact ready
Universal Compatibility: 240V AC / 60V DC voltage rating covers all applications
French Engineering: Schneider Electric's 180+ years of circuit protection expertise

Technical Parameter	C60H Specification	Commercial Advantage
Curve Type	C-Curve (5-10x magnetic trip)	Optimal for fluorescent lighting, small motors, inductive loads
Breaking Capacity AC	10kA @ 240V AC (IEC 60898)	High fault current protection for commercial installations
Breaking Capacity DC	15kA @ 60V DC (IEC 60947-2)	Unique DC application capability for solar, battery systems
Operating Temperature	-25°C to +70°C	Reliable operation in harsh Indian commercial environments
Mechanical Endurance	20,000 operations	Long service life reduces maintenance costs
Electrical Endurance	3,000 operations @ rated current	High switching capacity for frequent load operations
Energy Limiting Class	Class 3	Reduces let-through energy, protects downstream equipment

Office Buildings: Fluorescent lighting, HVAC systems, elevator controls
Retail Stores: Shop lighting, display systems, escalators, cash registers
Industrial Facilities: Small motors up to 5HP, control panels, machinery
Educational Institutions: Classroom lighting, laboratory equipment, workshops
Data Centers: UPS systems, server equipment, cooling systems
Manufacturing Plants: Production equipment, conveyor systems, small automation

VisiTrip Indicator: Clear visual indication when MCB has tripped - saves troubleshooting time
VisiSafe Feature: Reduces intervention time during maintenance and service work
Comb Busbar Compatibility: Reduces installation time by 50% vs traditional wiring
Auxiliary Contact Ready: Add monitoring contacts without rewiring
Vigi RCD Compatible: Integrate earth leakage protection seamlessly
Standard DIN Rail: Quick clip-on mounting with secure retention

Application Type	AC Specification	DC Specification	Use Case
Commercial AC Systems	10kA @ 240V AC	N/A	Office buildings, retail stores, factories
DC Power Systems	N/A	15kA @ 60V DC	Solar systems, battery backup, telecom
Hybrid Installations	10kA @ 240V AC	15kA @ 60V DC	Data centers, renewable energy, industrial
UPS & Battery Systems	Input: 10kA AC	Output: 15kA DC	Critical power systems, hospitals, IT

Prevents Nuisance Tripping: 5-10x trip range accommodates inductive load inrush
Balanced Protection: Fast enough for safety, slow enough for operational reliability
Commercial Optimization: Perfect for fluorescent ballasts, small motor starting
Cost Effective: Eliminates need for oversized breakers or soft starters
Universal Application: Suitable for most commercial and light industrial loads
Standard Choice: Widely accepted by consultants and contractors worldwide
