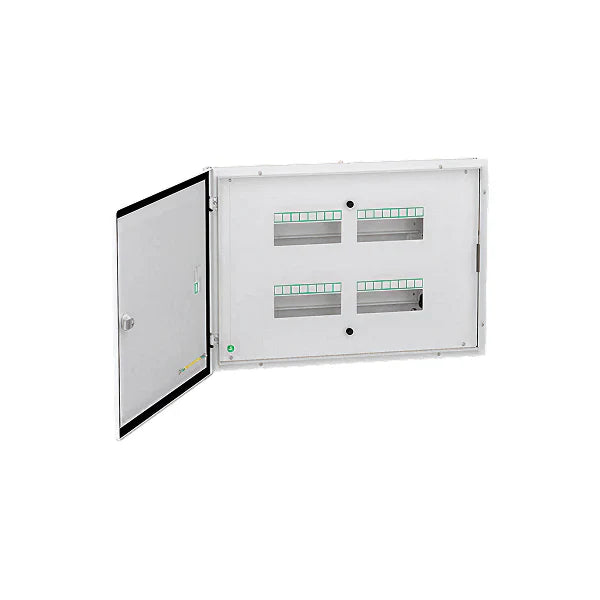

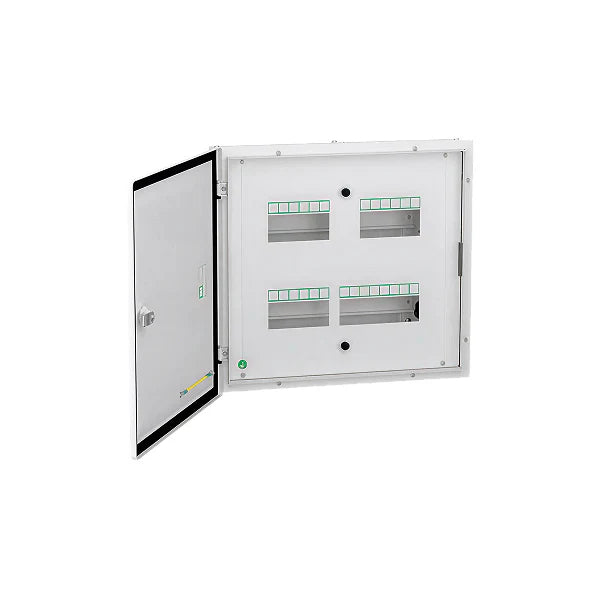

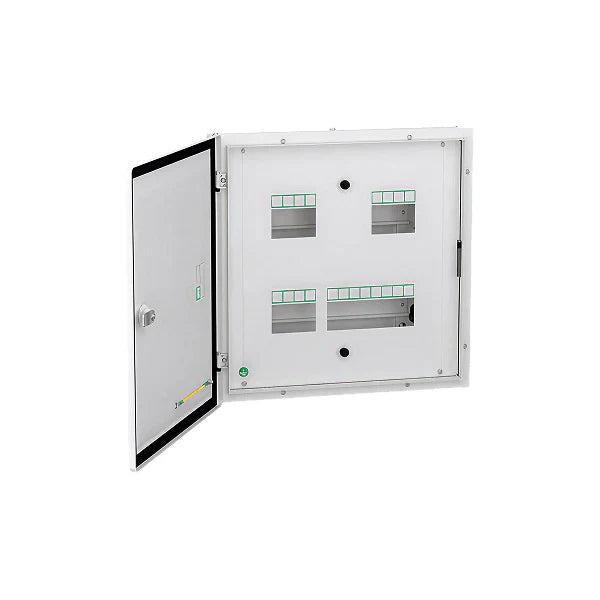

Schneider Electric Acti9 TPN DB, Double Door

Rs. 3,833.00

~~Rs. 9,926.00~~ Rs. 3,833.00

62% OFF Sold out

Taxes included. Shipping calculated at checkout.

Pole 4 Way 6 Way 8 Way 12 Way

Product Highlights

Global Brand Trust: Schneider Electric's 180+ years of electrical expertise
Professional Grade: IEC 61439-3 NABL certified for commercial & industrial use
Superior Protection: IP43 rating withstands Bangalore's climate challenges
Anti-Corrosive Design: Galvanized steel construction ensures 25+ year lifespan
Premium Aesthetics: White RAL 9003 finish complements modern interiors

Technical Parameter	Acti9 A9HTND04 Value	Professional Advantage
IP Protection Rating	IP43 with IK09 Impact Resistance	Protects against dust, water splashes & mechanical impact
Enclosure Material	Galvanized Steel with Powder Coating	Superior corrosion resistance, 25+ year service life
Door Configuration	Double Door with Reversible 180° Opening	Flexible installation, easy maintenance access
Color & Finish	White RAL 9003 Premium Powder Coating	UV resistant, easy to clean, professional appearance
Dimensions (W×H×D)	424mm × 422mm × 101.4mm	Compact footprint, optimized space utilization
Module Capacity	12 Modules (4-Way TPN)	Accommodates MCBs, RCCBs, RCBOs, isolators
Mounting Options	Surface & Flush Mounting	Versatile installation for any application
Operating Temperature	-25°C to +70°C	Reliable operation in extreme Indian climate conditions

Galvanized Steel Box: 1.2mm thick steel with zinc coating prevents rust formation
Galvanized Steel DIN Rail: 35mm standard rail with superior mounting strength
Galvanized Cable Gland Plate: Removable plate with optimized knockouts
CRCA Door Construction: Cold Rolled Close Annealed steel for dimensional stability
CRCA Central Plate: Precision-formed mounting surface for perfect device alignment
Robust Locking Mechanism: Multi-point door lock prevents unauthorized access

Premium Residential: Luxury apartments, villas, penthouse installations
Commercial Spaces: Office buildings, retail stores, restaurants, hotels
Industrial Facilities: Light manufacturing, workshops, warehouse distribution
Institutional Buildings: Schools, hospitals, government offices, banks
Infrastructure Projects: Metro stations, airports, shopping malls, data centers

Installation Feature	Acti9 Advantage	Time/Cost Savings
Reversible Door Opening	180° opening in either direction	Eliminates site measurement errors
Optimized Wiring Space	25% more internal space vs competitors	30% faster installation time
Removable Gland Plates	Top & bottom plates with multiple knockouts	Flexible cable entry options
Pre-marked DIN Rail	Module positioning marks included	Perfect device alignment every time
Earth & Neutral Bars	Pre-installed with adequate terminals	Ready-to-use out of the box

Authorized Schneider Partner: 100% genuine products with full manufacturer warranty
Quality Assurance: Pre-delivery inspection for defects and damage
Rapid Delivery: 60-minute delivery to major Bangalore commercial zones
Professional Packaging: Industrial-grade packaging prevents transportation damage

Recyclable Materials: 95% recyclable galvanized steel construction
Low Carbon Footprint: Optimized manufacturing reduces CO2 emissions
Sustainable Packaging: Recycled cardboard packaging materials
Energy Efficient: Low power loss design reduces operational energy consumption
Long Service Life: 25+ year lifespan reduces replacement frequency

Professional Distribution Board Delivery:

60-Minute Express: Electronic City, HSR Layout, Koramangala, Indiranagar, Whitefield & more
90-Minute Standard: Marathahalli, Bellandur, JP Nagar, Banashankari, Hebbal & more
120-Minute Extended: Rajajinagar, Yelahanka, BTM Layout, Malleshwaram & more
Same Day Service: All major industrial areas and IT corridors
Free Delivery: Orders above ₹10,000 across all Bangalore zones
